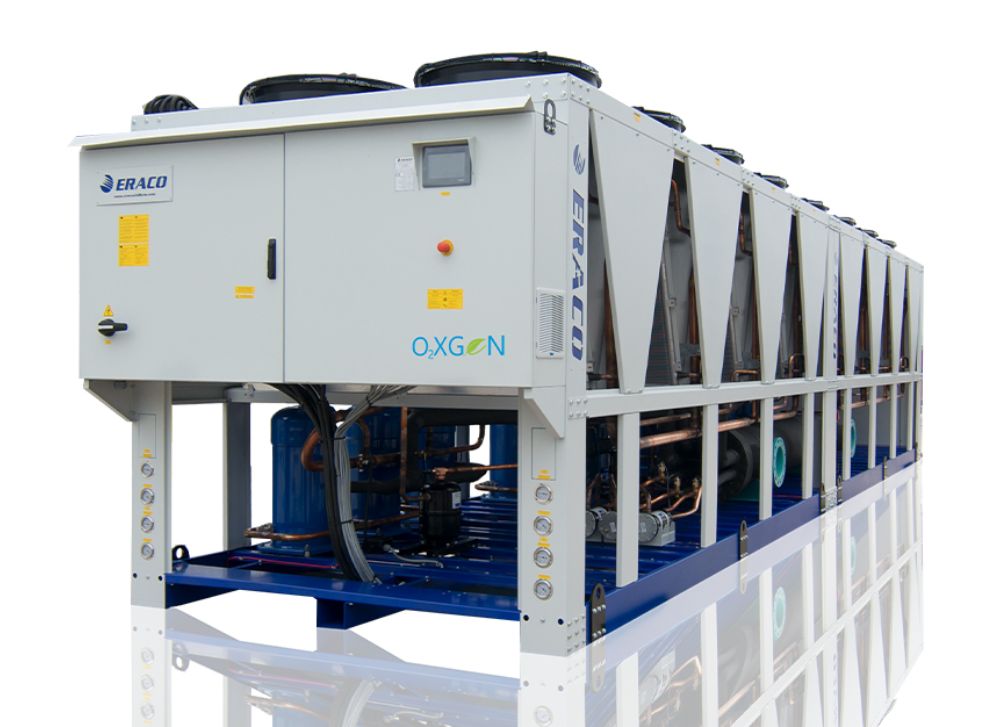

ENE-D Air-Cooled Hybrid Chiller (Double Water Outlet)

Units of this series comprise of air-cooled chiller and dry-cooler units operating in a compact structure, connected to a single unit and a common control system. According to process needs

  • Chiller and dry-cooler at the same time (to different process lines)
  • Chiller only
  • Dry-cooler only

etc. operating forms can be applied. Especially in cases where low air temperature and high process water temperature are required, it is ensured that free cooling works for long periods and thus high levels of electricity savings are ensured. All required working modes are managed sensitively by the “freecooling kit” in the device, leaving no need for any user intervention. Apart

Category:

Description

  • Tandem 9 or 12 Hermetic Scroll Compressor
  • Integrated free cooling system
  • New generation R-410A refrigerant conforming to Kyoto and Montreal protocols
  • Maximum energy savings with microprocessor processor control
  • Special Airtech condenser design to minimize air side pressure losses
  • Surface coated condenser against corrosive environments
  • Low (manual) and high (automatic) pressurestat
  • 7” Touchscreen LCD (Protection Class IP65)
  • Check valve for each compressor in the discharge line
  • High efficiency shell&tube type evaporator
  • Condenser with large surface area and axial fan with high air flow
  • Phase protection relay
  • Pressure sensors for fan regulation
  • Thermostatic expansion valve
  • Flow switch against water flow irregularities
  • Main switch with safety lock on electrical panel cover, emergency stop button and magnetic thermal protection
  • Powder polyester paint against UV rays on galvanized sheet with high surface hardness, wear and tear resistance.
  • Control panel in CE standards
